N Series

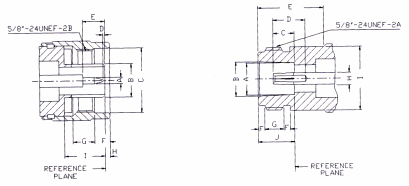

Interface Dimensions



MALE Letter Millimeters (Inches) Minimum Maximum A 1.60(.063) 1.68(.066) B — 8.38(.330) C 16.00(.630) — D 0.08(.003) — E 5.33(.210) 5.84(.230) F 4.01(.158) 4.27(.168) G 4.50(.177) — H 0.41(.016) 1.52(.060) I 10.11(.398) 10.46(.412)   FEMALE Letter Millimeters (Inches) Minimum Maximum A 8.03(.316) 8.13(.320) B 8.53(.336) 8.74(.344) C 4.75(.187) 5.26(.207) D 5.33(.210) — E 10.72(.422) — F 1.19(.047) 1.96(.077) G 4.37(.172) 5.13(.202) H 3.00(.118) 3.15(.124) I — 15.93(.627) J 9.04(.356) 9.19(.362)           Electrical : Impedance 50 ohm Frequency Range 0 to 11.0 GHz VSWR Straight : 1.3 max ; Right Angle : 1.5 max Working Voltage 1,000 volts rms max at sea level Dielectric Withstanding Voltage 2,500 volts rms max at sea level Contact Resistance center contact=1.0 Milliohms max outer contact=1.0 Milliohms max Insertion Loss 0.3 dB max at 10 GHz Insulation Resistance 5,000 Megohms min 　 　 　Mechanical & Environmental : Mating 5/8"-24 threaded coupling Cable Retention RG-58,141,142,223 →40 lbs min RG-59,62A,210→40 lbs min RG-174,188,316 →20 lbs min RG-8A,9B,213,214 →80 lbs min Durability 500 matings Coupling Nut Retention 100 lbs min Temperature Range -65°C to 165°C Vibration MIL-STD-202 Method 204 Test Cond. B. Salt Spray MIL-STD-202 Method 101 Test Cond. B. Thermal shock MIL-STD-202 Method 107 Test Cond. B. 　 　 　Material : 　 Material Plating Connector Body Brass Nickel or Silver Center Contact Male:Brass Female:Brass, 　　　　Phosphor Bronze or 　　　　Beryllium Copper Gold Gold Insulation Teflon None Gasket Silicone Rubber, Rubber None Crimp Ferule Annealed Copper Same as Body
