MCX Series

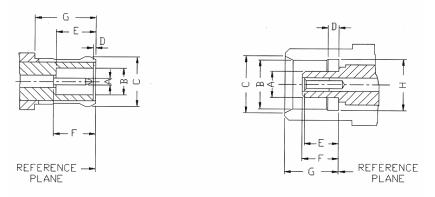

Interface Dimensions



MALE Letter Millimeters (Inches) Minimum Maximum A 0.48(.019) 0.53(.021) B 2.00(.079) 2.07(.0815) C 3.63(.143) 3.80(.150) D 0.00(.000) 0.30(.012) E 2.80(.110) 3.20(.126) F 2.80(.110) 3.20(.126) G 4.15(.163) —   FEMALE Letter Millimeters (Inches) Minimum Maximum A 1.80(.071) 1.98(.078) B 3.42(.135) 3.48(.137) C 3.80(.150) — D 0.75(.030) 0.85(.033) E 2.30(.091) 2.80(.110) F 2.60(.102) 2.80(.110)  G 4.00(.157) 4.12(.162) H 3.60(.142) 3.75(.147)           Electrical : Impedance 50 ohm 75 ohm Frequency Range 0 to 6.0 GHz 0 to 6.0 GHz VSWR 0-2 GHz→ 1.22 max (Straight) 1.50 max (Right Angle) 2-6 GHz→ 1.35 max (Straight) 1.63 max (Right Angle)   Dielectric Withstanding Voltage 1000 volts rms , at sea level Contact Resistance center contact=5.0 milliohms max outer contact=1.0 milliohms max Working Voltage 335 volts rms max , at sea level Insertion Loss 0.1 dB max @ 1GHz (Straight) 0.2 dB max @ 1GHz (Right Angle) Insulation Resistance 1,000 Megohms min 　 　 　Mechanical & Environmental : Mating "Push-Pull" snap-on coupling Durability 500 matings Cable Retention RG-174,188,316 →20 lbs min Temperature Range -65°C to 165°C Vibration MIL-STD-202 Method 204 Test Cond. D. Salt Spray MIL-STD-202 Method 101 Test Cond. B. Thermal shock MIL-STD-202 Method 107 Test Cond. C. 　 　 　Material : 　 Material Plating Connector Body Brass Nickel or Gold Center Contact Male: Brass Female: Beryllium Copper 30 µ " gold over 100 µ " nickel 30 µ " gold over 100 µ " nickel Insulation Teflon None Crimp Ferule Annealed Copper Nickel or Gold
