MMCX Series

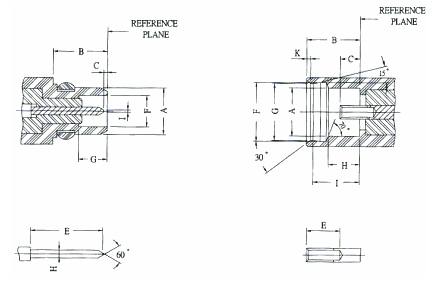

Interface Dimensions



MALE Letter Millimeters (Inches) Minimum Maximum A — 2.10(.094) B 2.70(.106) — C 0.00(.000) 0.25(.010) E — 3.15(.124) F 1.58(.62) 1.62(.064) G 1.45(.057) — H 0.38(.015) 0.42(.017) I — 0.20(.008) K — —   FEMALE Letter Millimeters (Inches) Minimum Maximum A 2.41(.095) — B 2.60(.102) — C 0.90(.035) 1.20(.047) E 1.40(.055) — F 3.00(.118) 3.04(.120) G 2.88(.113) 2.90(.114) H 1.57(.062) 1.63(.064) I 2.30(.091) 2.34(.092) K — 0.23(.009)           Electrical : Impedance 50 ohm Frequency Range 0 to 6 GHz VSWR 1.2 max (Straight) 1.3 max (Right Angle) Voltage Rating 170 volts rms max. at seal level Dielectric Withstanding Voltage 500 volts rms. at seal level Contact Resistance center contact=5.0 Milliohms max outer contact=2.5 Milliohms max Insertion Loss 0.2 dB max @ 1GHz (straight) 0.3 dB max @ 1GHz (Right Angle) Insulation Resistance 1,000 Megohms min 　 　 　Mechanical & Environmental : Mating Snap-on coupling Durability 500 matings Cable Retention RG-58,141,142,223→40 lbs min RG-174,188,316 →20 lbs min Temperature Range -65°C to 165°C Vibration MIL-STD-202 Method 204 Test Cond. D. Salt Spray MIL-STD-202 Method 101 Test Cond. B. Thermal shock MIL-STD-202 Method 107 Test Cond. F. 　 　 　Material : 　 Material Plating Connector Body Brass Nickel or gold Center Contact Male:Brass Female:Beryllium Copper 30 μ " gold over 100 μ " nickel 30 μ " gold over 100 μ " nickel Insulation Teflon None Crimp Ferule Annealed Copper Nickel or Gold
