TNC Series

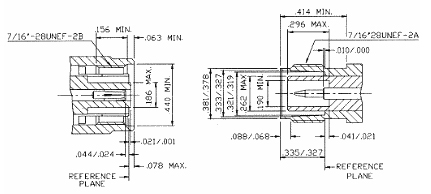

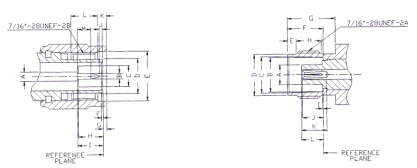

Interface Dimensions



MALE Letter Millimeters (Inches) Minimum Maximum A 2.06(.081) 2.21(.087) B 1.32(.052) 1.37(.054) C 4.83(.190) — D SLOTTED AND FLARED TO MEET ELECTRICAL AND MECHANICAL REQUIREMENTS E 11.18(.440) — F 0.15(.006) — G — 1.98(.078) H 5.28(.208) 5.79(.228) I 5.33(.210) — J 0.08(.003) 1.02(.040) K 1.60(.063) — L 3.96(.156) — M 1.98(.078) —   FEMALE Letter Millimeters (Inches) Minimum Maximum A — 4.72(.186) B 8.10(.319) 8.15(.321) C 8.31(.327) 8.46(.333) D 9.60(.378) 9.68(.381) E 1.73(.068) 2.24(.088) F 8.31(.327) 8.51(.335) G 10.52(.414) — H 4.75(.187) — I — 0.15(.006) J 4.72(.186) 5.23(.206) K 4.95(.195) — L 4.78(.188) 5.28(.208)           Electrical : Impedance 50 ohm 75 ohm Frequency Range 0 to 11.0 GHz 0 to 1.0 GHz VSWR Straight : 1.3 max ; Right Angle : 1.35 max Working Voltage 500 volts rms max at sea level Dielectric Withstanding Voltage 1,500 volts rms max at sea level Contact Resistance center contact=1.5 Milliohms max outer contact=1.0 Milliohms max Insertion Loss 0.2 dB max @ 3 GHz Insulation Resistance 5,000 Megohms min 　 　 　Mechanical & Environmental : Mating 7/16"-28 threaded coupling Cable Retention RG-58,141,142,223 →40 lbs min RG-59,62A,210→40 lbs min RG-174,188,316 →20 lbs min Durability 500 matings Coupling Nut Retention 100 lbs min Temperature Range -65°C to 165°C Vibration MIL-STD-202 Method 204 Test Cond. B. Salt Spray MIL-STD-202 Method 101 Test Cond. B. Thermal shock MIL-STD-202 Method 107 Test Cond. B. 　 　 　Material : 　 Material Plating Connector Body Brass Nickel or Silver Center Contact Male: Brass Female: Brass, 　　　　Phosphor Bronze or 　　　　Beryllium Copper Gold Gold Insulation Teflon or Delrin None Gasket Silicone Rubber, Rubber None Crimp Ferule Annealed Copper Nickel or Silver Reverse Polarity TNC

Note: In keeping on going product improvement, we reserve right to make     product changes at any time without notice.  Contact for more info Weltech Electronics E/26-31 , G.I.D.C Industrial Estate, Phase II, Dared, Jamnagar 361 004. Gujarat (INDIA.) Phone :- +91-288-2730034 Fax :- +91-288-2730589 Email :- pnbudh@satyam.net.in  avon@avonconnectors.com
